Stud welder. Tip ignition.
<strong>CDP-66M</strong>
Stud Welder
tip ignition device with digital travel measurement for precise and repeatable welding processes up to M8.
At a Glance
Technical Specifications
M3 - M8
Steel / Stainless Steel
66,000 µF
Capacity
1–3 ms
Welding time
UP TO 20
Bolts per minute
50–200 V
Charging Voltage
11.5 kg
Weight
Digital Displacement Measurement &
Optimal Process Control
For Reproducible Welding Processes
When used in conjunction with CONTACT-M or GAP-M, the CDP-66M measures key mechanical process parameters directly on the device.
Bolt projection, lift, penetration, and piston speed can be displayed and monitored—ensuring precise adjustment and reproducible welding results.
Digital position measurement is already available without additional process control. Optionally, process control can be expanded to include the acquisition and evaluation of electrical welding parameters.
Optional Process Control
Target/Actual Comparison & Border Monitoring
Storage of Process Data
Optional Interface
USB interface for data transfer
Versatile
CDP-66M
SHEET METAL FABRICATION
Securely fasten bolts to sheet metal and housings.
Control Panel Construction
Bolt fastening on thin sheet metal with low thermal stress.
METAL CONSTRUCTION
Quick fasteners that require no drilling or thread cutting.
Mechanical Engineering
Reproducible connections for industrial components and assemblies.
Standard Welding Gun
Contact Procedure for the CDP-66M
Welding guns with position sensing
Contact and Cracking Processes for the CDP-66M

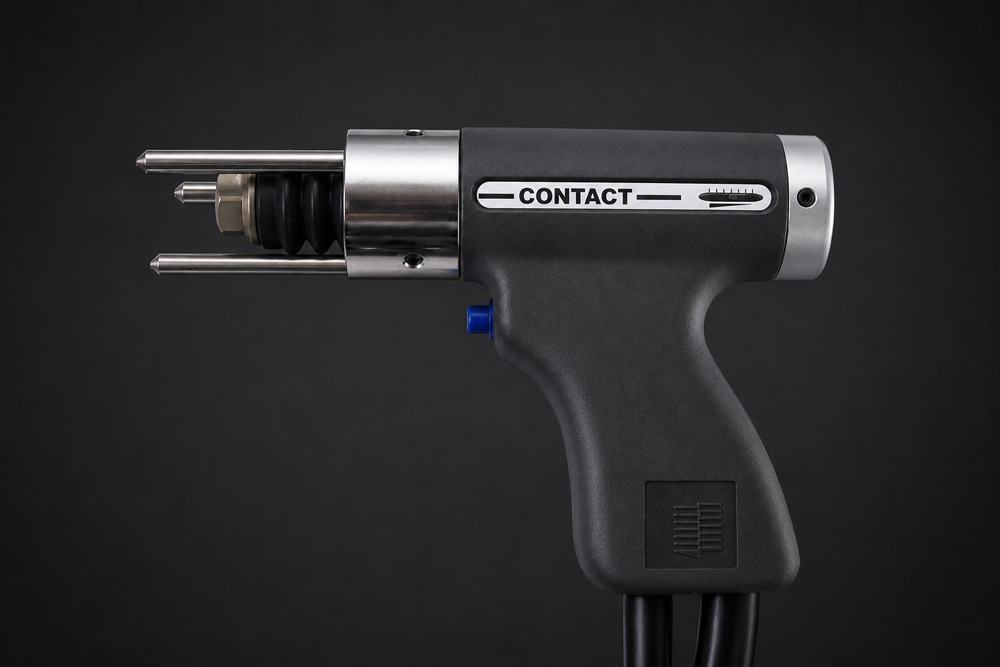

Contact
Contact Methods
Compact welding gun for contact welding applications.

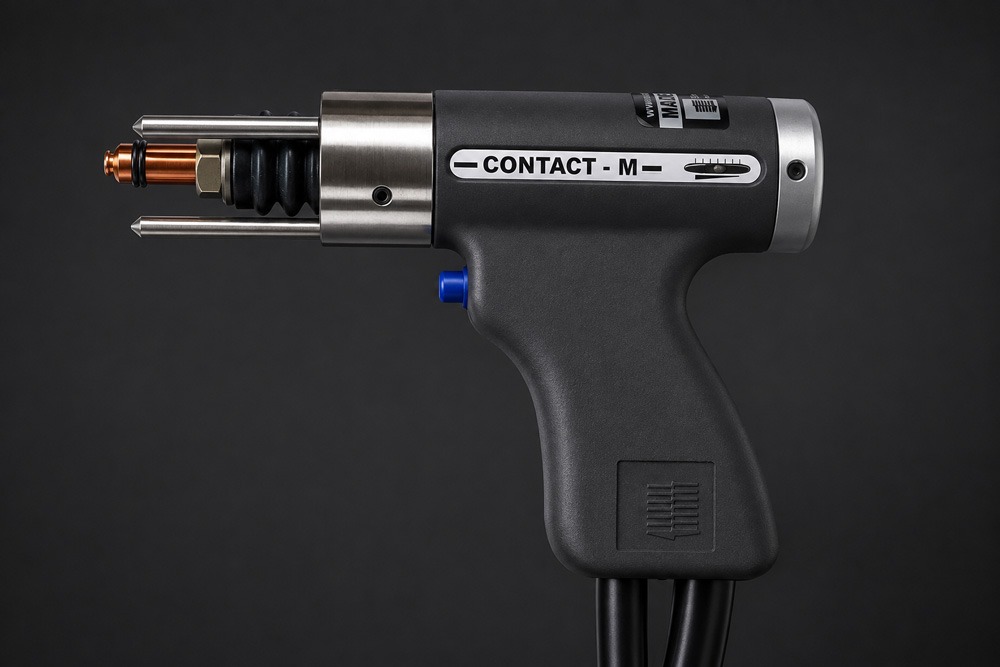

Contact-M
Contact Methods
Integrated position measurement for bolt protrusion, penetration depth, and speed.
Gap-M
Splitting Process
Integrated position sensing for measuring the stroke. Suitable for aluminum applications.
Downloads
Technical Documentation
All the important information at a glance in this PDF.
Still unsure about which device to choose?
Frequently Asked Questions
About the CDP-66M
The CDP-66M is designed for steel and stainless steel weld studs ranging from M3 to M8. Non-hardenable aluminum alloys can be processed up to M6, depending on the material and application.
Compatible models include CONTACT, CONTACT-M, GAP, and GAP-M, among others.
Digital position measurement records mechanical parameters such as bolt protrusion, lift, penetration, and speed, and can be used even without optional process control. Process monitoring expands on this by adding data logging, analysis, and limit value monitoring, as well as electrical process parameters such as welding current and welding time.
Suitable materials include steel and stainless steel, zinc-coated sheet metal up to 15 µm, and—depending on the material and application— non-hardenable aluminum alloys up to M6.
The CDP-66M achieves a welding rate of up to 20 bolts per minute in continuous operation.
CDP-66M FOR YOUR WELDING PROCESS
TECHNICAL ADVICE DIRECTLY FROM THE SPECIALIST
Would you like to check whether the CDP-66M is suitable for your application?
We can advise you on materials, stud diameter, welding guns, and automation.
OTHER DEVICES IN THE CDP-M SERIES

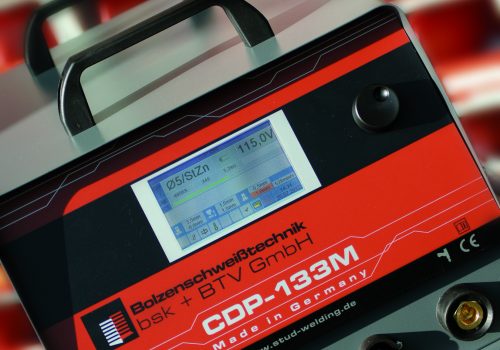

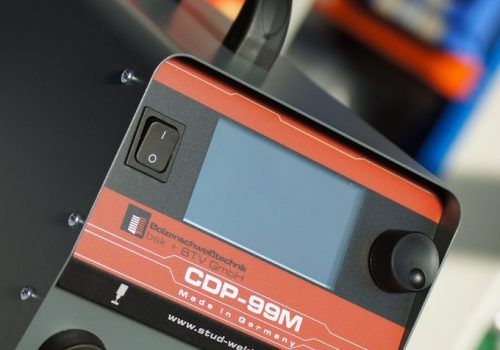

In addition to the CDP-66M, the CDP-99M and CDP-133M are other high-performance models in the CDP-M series designed for larger welding areas and more demanding applications.
