IS-DS / insulating pin with tip ground on both sides

IS-DS / insulating pin with tip ground on both sides

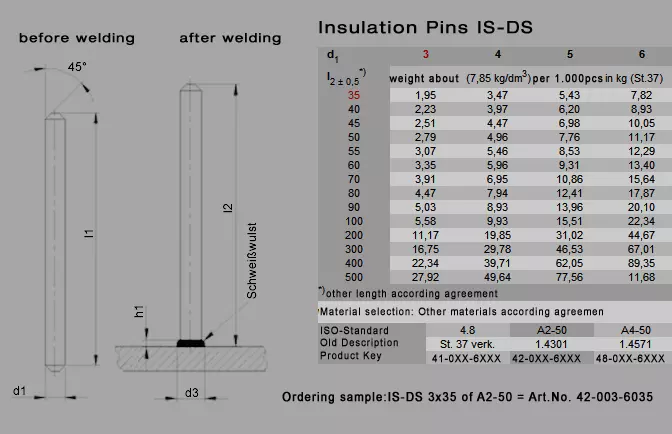

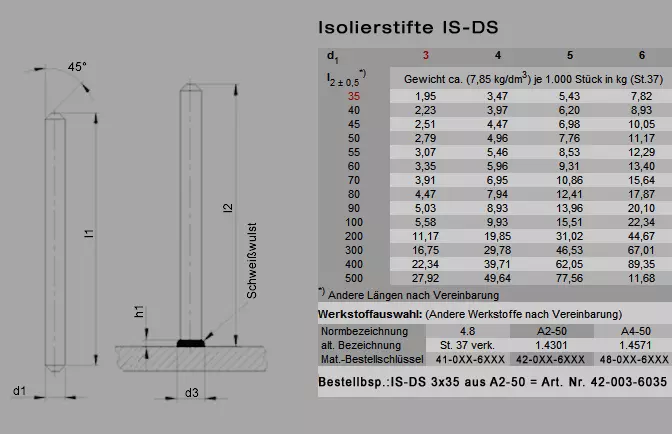

Short-time drawn arc stud welding with the IS-DS / insulating pin with tip ground on both sides. These pins are available in the following materials: steel (4.8 copper-plated), stainless steel (A2-50) or aluminum (AlMg3). They are suitable for manual or fully automatic stud welding. The dimensions are in the table below.
We - Stud Welding Technology bsk + BTV GmbH - can also supply you with threaded bolts, pins, internally threaded sockets and grounding flat plugs from our extensive warehouse at short notice and are also happy to manufacture special bolts according to your special requirements in high quality.
Isolierstift-bsk-BTV-IS-DS

SUITABLE DEVICE TECHNOLOGY (examples):

We have set new standards with the M series of stud welding devices and the matching stud welding guns. We would be happy to advise you on which device meets your requirements and is the perfect fit for your application. For more than 10 years we have been the untouched number 1 in the automatic area with the patented automatic welding head RAPIDOR QF. The digital automatic welding head RAPIDOR QF is designed for the semi- and fully automatic stud welding of welded threaded studs, bushings and pins and is indispensable when welding studs of different lengths.
Gap-M

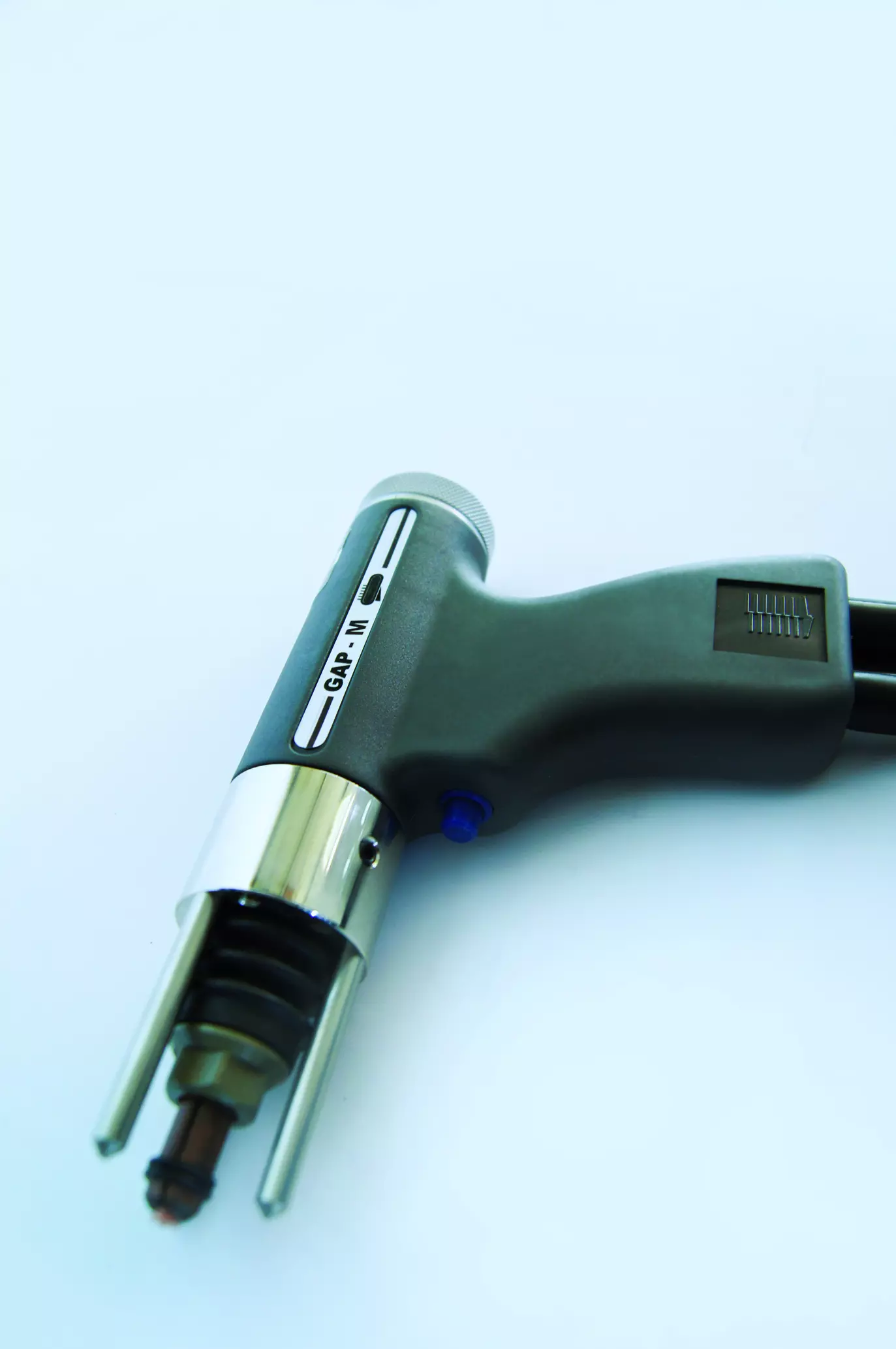

GAP-M stud welding gun
CDP-99M, Bolzenschweißgerät

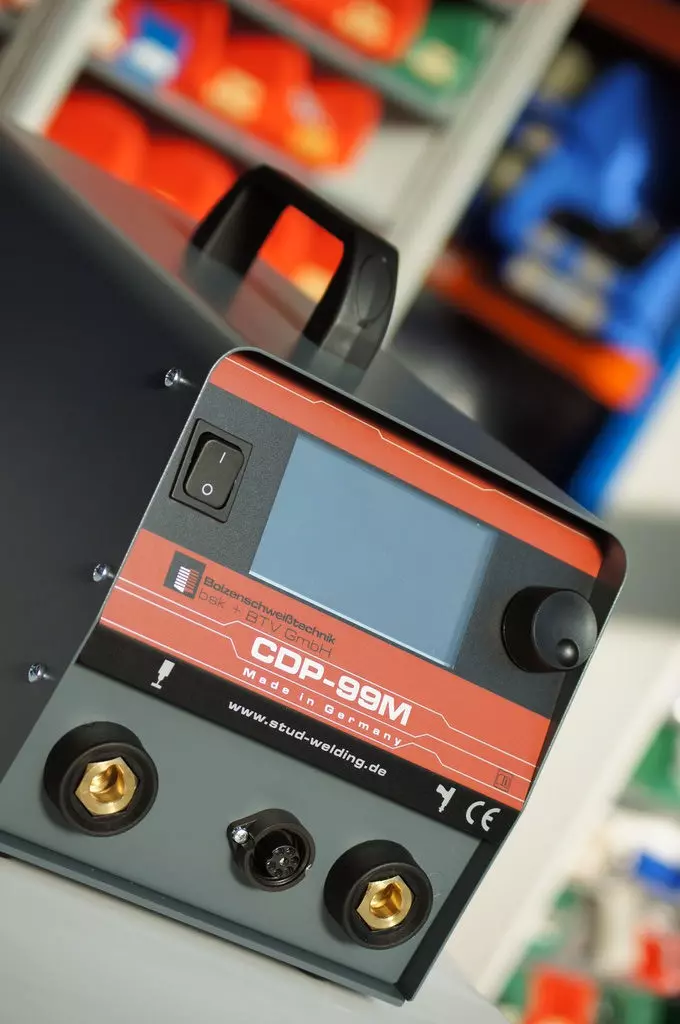

Stud welder CDP-99M
rapidor_kopf_01

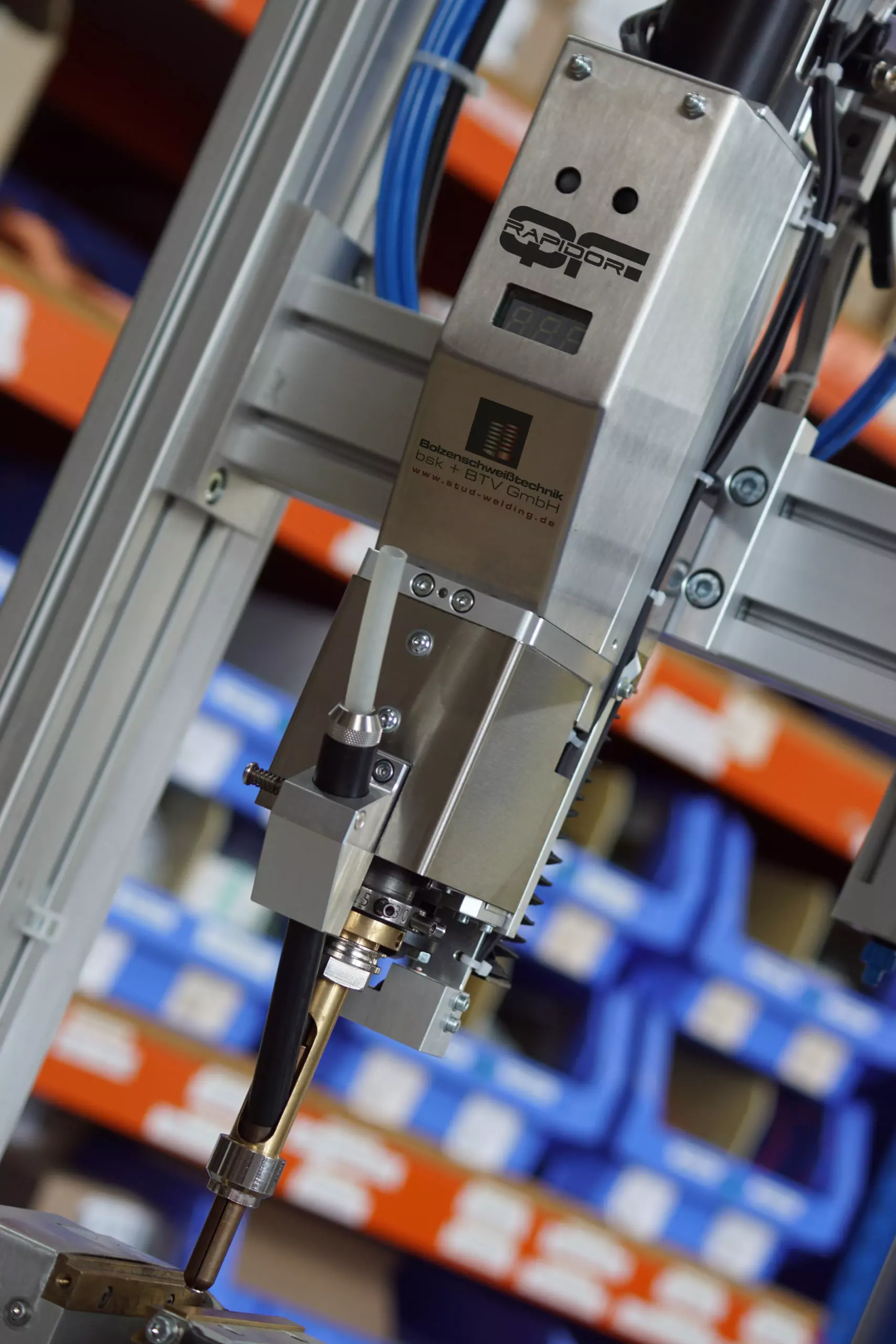

Automatic welding head RAPIDOR QF
