CDP-66M
TECHNICAL DATA
M3 – M8
66,000 µF
1 – 3 ms
up to 20
50 – 200 V
11.5 kg
DIGITAL DISPLACEMENT MEASUREMENT
OPTIONAL PROCESS MONITORING
OPERATION & EQUIPMENT SAFETY
4-INCH GRAPHIC DISPLAY
SINGLE-KNOB OPERATION
FAULT DIAGNOSIS & STOP FUNCTION
THERMOSTATICALLY CONTROLLED FAN
PROGRAM LIBRARY
MICROPROCESSOR CONTROL
CAPACITANCE MONITORING
Process monitoring
APPLICATIONS & MATERIALS
Standard welding gun
Welding guns with displacement measurement
Contact-M
SUITABLE MATERIALS
M3 – M8
≤ 15 µm
up to M6
COMPATIBLE WELDING ELEMENTS
Technical documents
Still unsure which unit to choose?
Find the right solution for your application.
START SOLUTION FINDERFrequently asked questions
about the CDP-66M
Which stud diameters can the CDP-66M weld?
The CDP-66M is designed for steel and stainless steel welding studs in the M3 to M8 range. Non-heat-treatable aluminium alloys can be processed up to M6, depending on the material and application.
Which welding guns are compatible?
Compatible models include CONTACT, CONTACT-M, GAP and GAP-M.
What is the difference between displacement measurement and process monitoring?

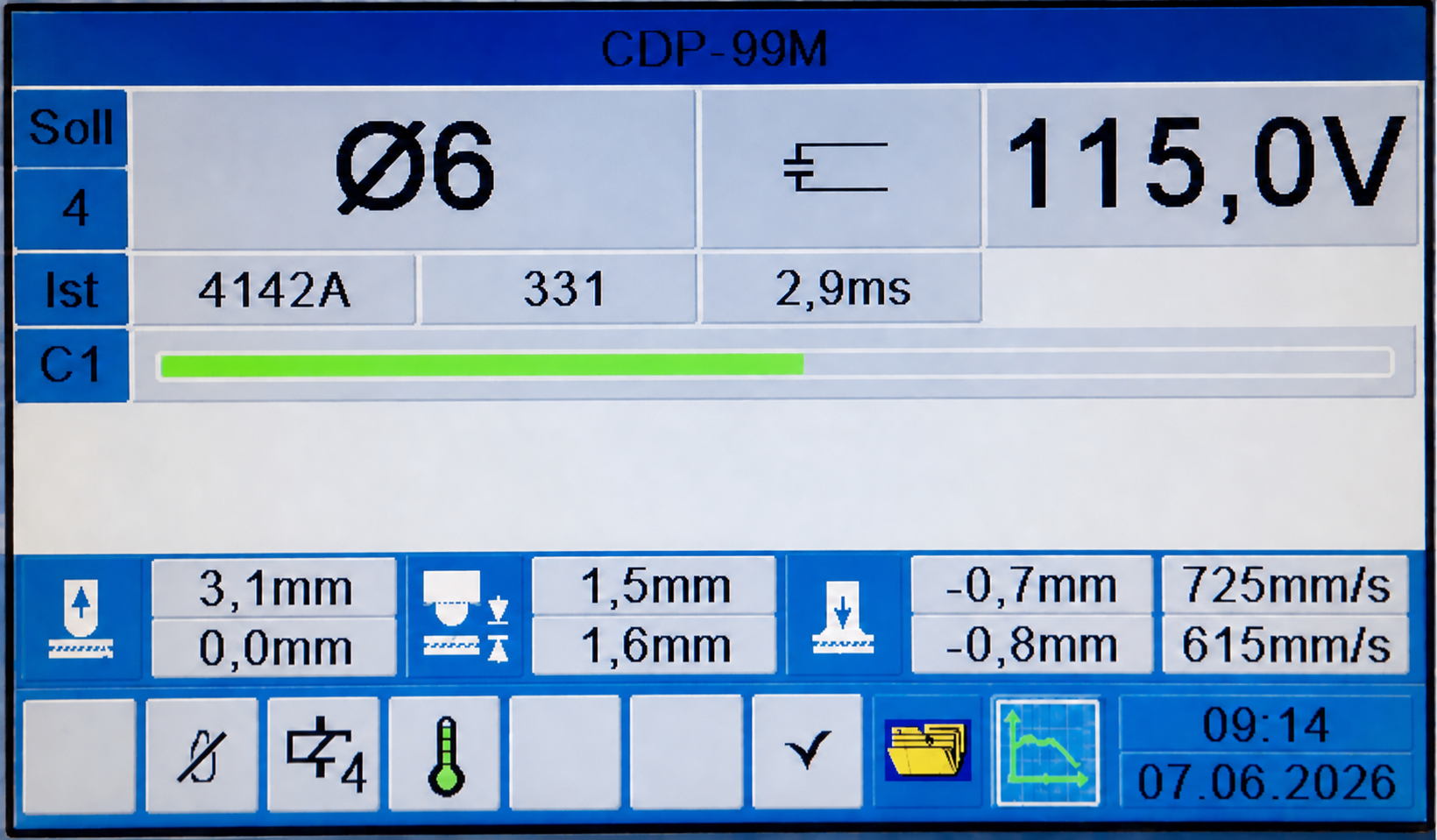

Digital displacement measurement records mechanical parameters such as stud protrusion, lift, plunge and speed and can be used without optional process monitoring. Process monitoring covers both mechanical and electrical values and compares actual values with setpoints. If a deviation falls outside the tolerance, the unit displays an error message.
Which materials can be welded?
Suitable materials are steel and stainless steel, zinc-coated sheets up to 15 µm and, depending on the material and application, non-heat-treatable aluminium alloys up to M6.
How fast is the welding rate?
The CDP-66M achieves a welding rate of up to 20 studs per minute in continuous operation.
CDP-66M FOR YOUR WELDING PROCESS
We advise you on materials, stud diameters, welding guns and automation.
