Equipment trolley
A mobile welding unit. Accessories within reach.
The compact equipment trolley for the CDP series brings the unit, accessories and tools to the workstation. Three shelves and a lockable drawer keep things organised in a small space.
Equipment trolley shown without welding unit or accessories.
Technical data
Robust & practical

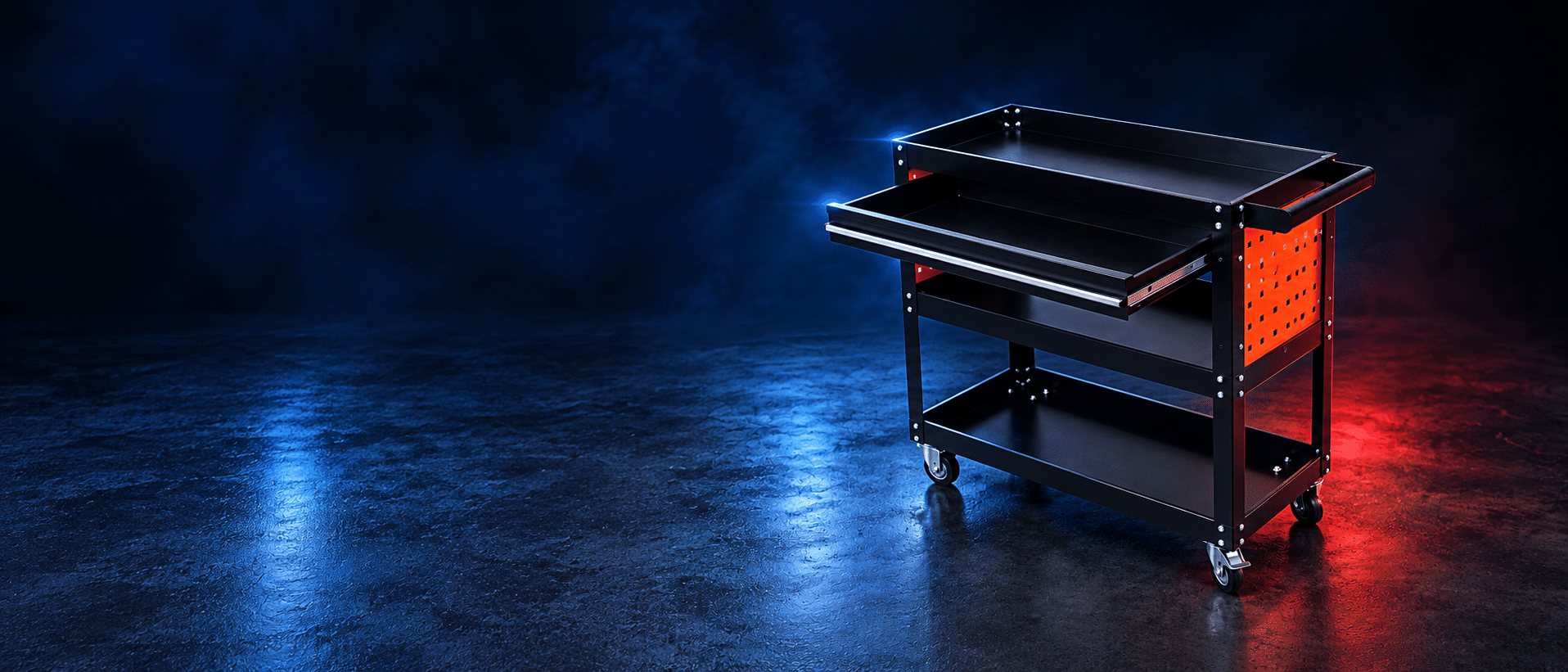

The powder-coated steel structure combines a black frame with orange perforated panels. The reinforced top shelf has an anti-slip rubber mat.
- Three shelves for the welding unit, accessories and tools.
- Lockable drawer for small parts.
- Four castors: two universal castors and two swivel castors with brakes.
- Narrow structure and handle for transport around the workstation.
Mobile with multi-station technology
The trolley is suitable for CDP series units. An appropriate SwitchBox can be placed on the bottom shelf.
With suitable multi-station technology, up to four welding guns can be used with one welding unit. The unit and SwitchBox versions are selected together.
The total load limit of 100 kg and the individual load limit of 35 kg per shelf must both be observed. The welding unit and SwitchBox are separate components.
Equipment trolley in detail
| Article number | 90-050-1045 |
|---|---|
| Structure | Steel, powder-coated |
| Shelves | 3 levels, reinforced top shelf with rubber mat |
| Drawer | Lockable |
| Mobility | 2 universal castors and 2 swivel castors with brakes |
| Colour | Black, with orange front and rear perforated panels |
| Dimensions including castors | 700 mm (+ handle) × 350 mm × 760 mm |
| Load capacity | 100 kg total, maximum 35 kg per shelf |
| Weight | 7.5 kg |
Application examples

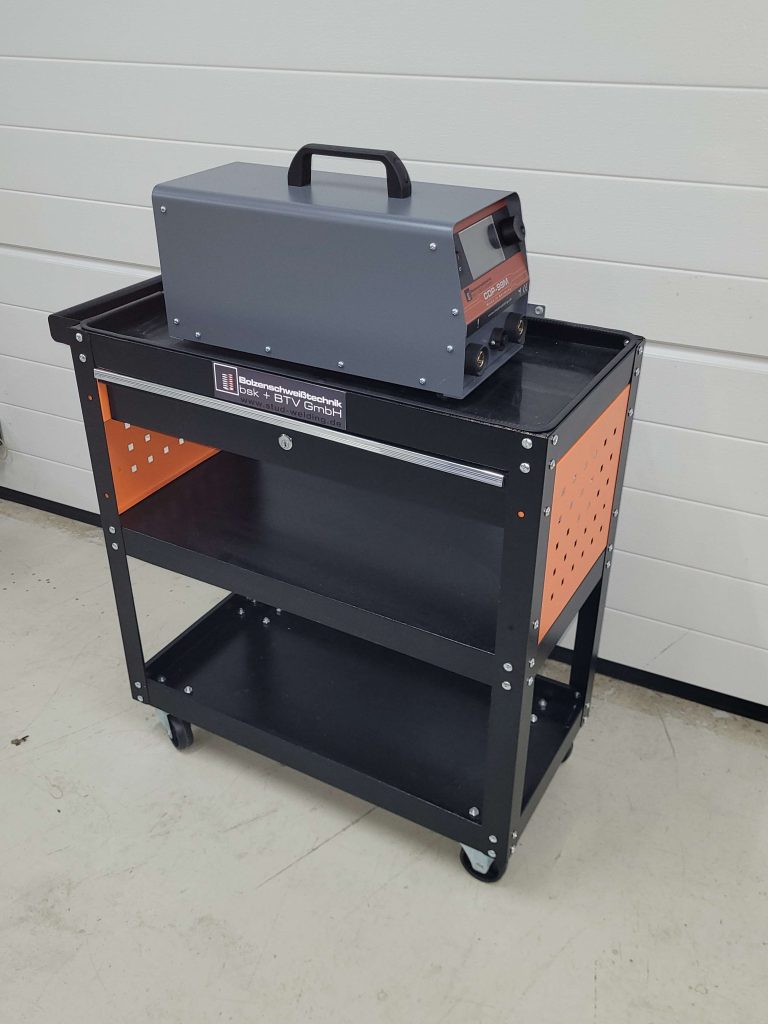

With a CDP welding unit
The unit is placed on the top shelf. The other levels provide space for accessories and an appropriate SwitchBox.

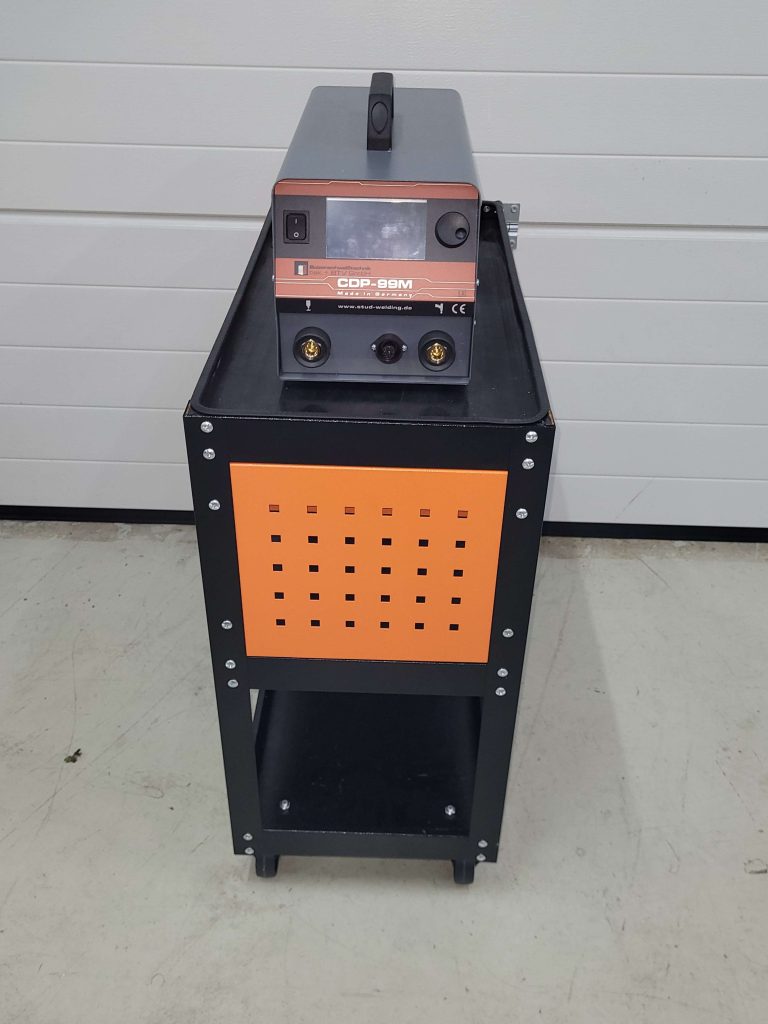

Front view with welding unit
Three shelves and the lockable drawer keep the unit, accessories and tools together at the workstation.
Original photographs from the product data sheet. The welding unit shown is a separately selected component.
Frequently asked questions
Which welding units is the trolley suitable for?
The equipment trolley is intended for the CDP series. We agree the specific combination of unit and accessories when you enquire.
Are the welding unit and SwitchBox included?
The equipment trolley is a separate accessory product. The welding unit, SwitchBox and other components are selected separately.
How much weight can the trolley carry?
A maximum of 100 kg in total and a maximum of 35 kg on any individual shelf. Both limits apply simultaneously.
Your unit. Your mobile workstation.
Tell us your CDP unit and the required accessory combination. We review a suitable configuration.
