BZ-V01 Bolt Isolation

BZ-V01 Bolt Isolation

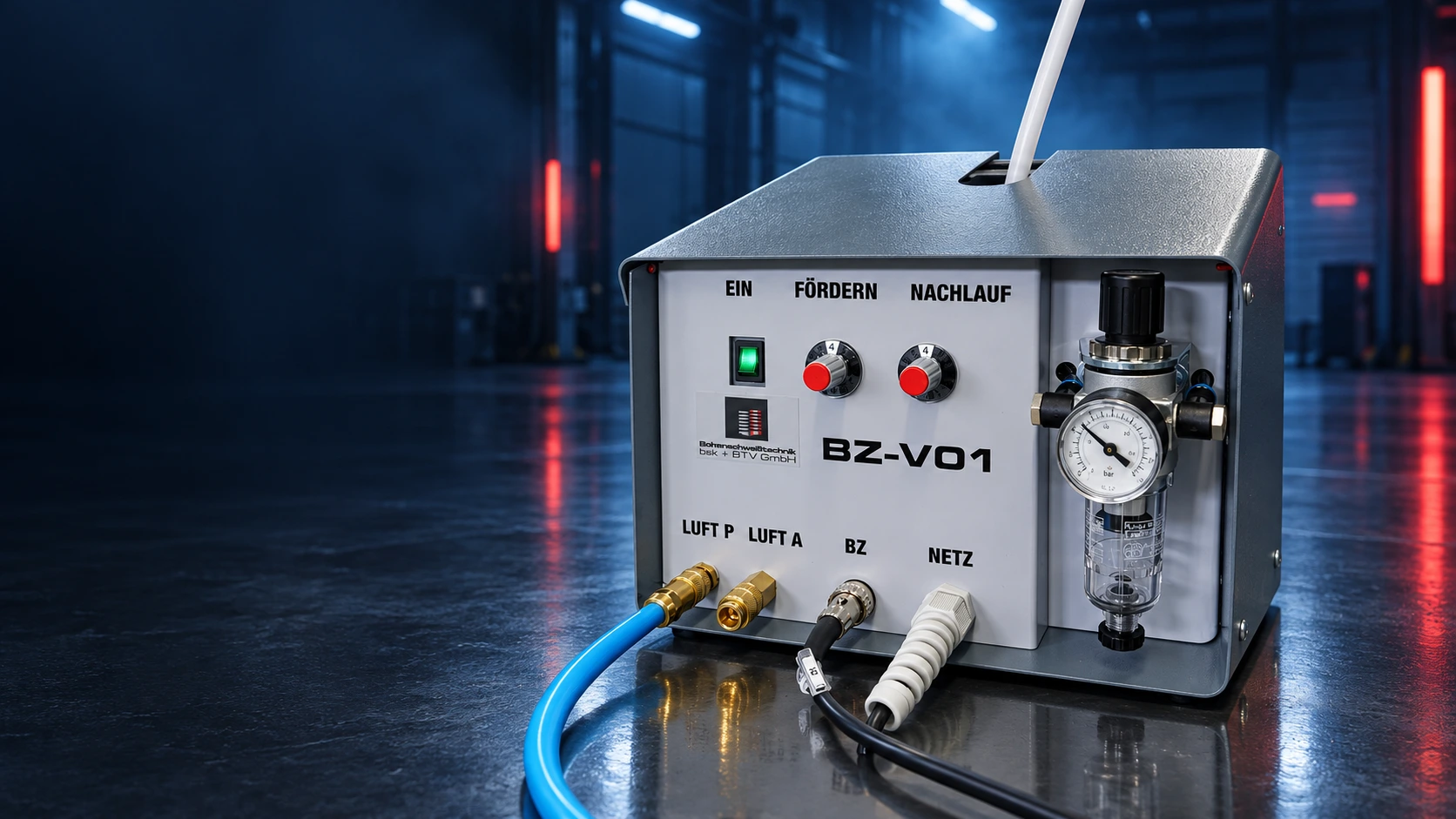

Fully automatic stud feeder BZ-V01. A robust, purely mechanical feeding system, which enables the feeding of stud lengths of up to 50mm. The almost maintenance-free and tried-and-tested system makes it possible to feed in welding elements with a flange for tip and short-cycle ignition.
BZ_V01b_blauer4
01
Maße
L x B x H: 490 x 280 x 270 mm (reine Gehäußemaße) L x B x H Gesamt: 538 x 280 x 270 mm (über alles inkl. Anschlüsse)
02
ANWENDUNG
Schnellwechselsystem für verschiedene Bolzendurchmesser und Zuführschläuche M3 - M8
03
Bolzen
Bolzenmaterial Stahl (unlegiert/legiert), Aluminium, Messing, Kupfer // 2-8 mm Durchmesser // 6-50 mm Bolzenlänge

Technische Merkmale

  • Robust, purely mechanical and reliable feeding system
  • Feeding of welding elements with
  • Flange for tip and short cycle ignition possible
  • Almost maintenance-free and proven system
  • Quick change system for different
  • Bolt diameter and feed hoses (M3 to M8)
  • Mechanically guided bolt, always in the correct position
  • Separate control of overrun and vibrator speed
  • Feeding of bolt lengths up to 50mm possible
  • Bolt material steel (unalloyed / alloyed), aluminium, brass, copper
  • Bolt diameter 2 – 8 mm
  • Bolt length 6 – 50 mm
  • Air connection 6 bar
  • electr. Connection 220V, 0.9A
  • Weight 23.5kg
  • Dimensions L x W x H 490 x 280 x 270 mm (pure housing dimensions)
  • Dimensions L x W x H compl. 538 x 280 x 270 mm (over everything including connections)
  • Pot volume 1 liter
