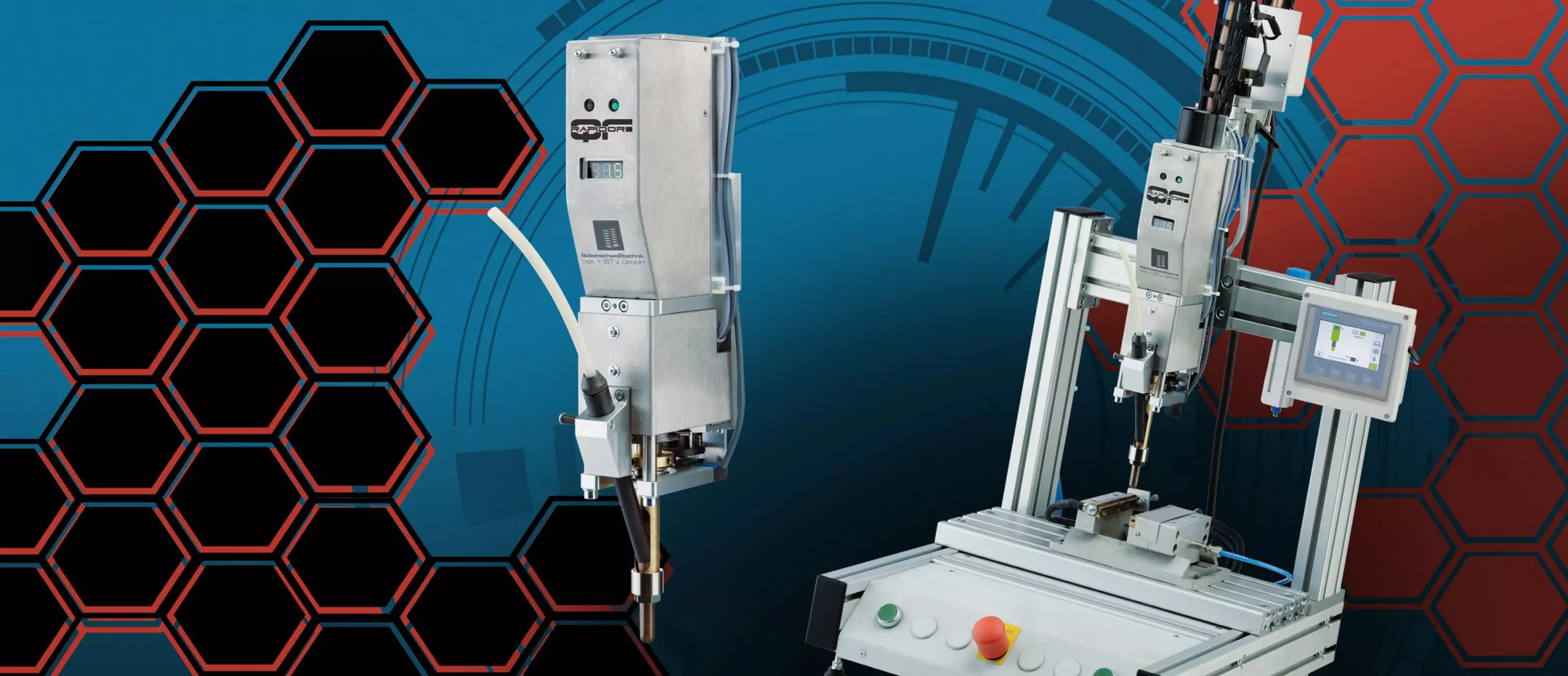

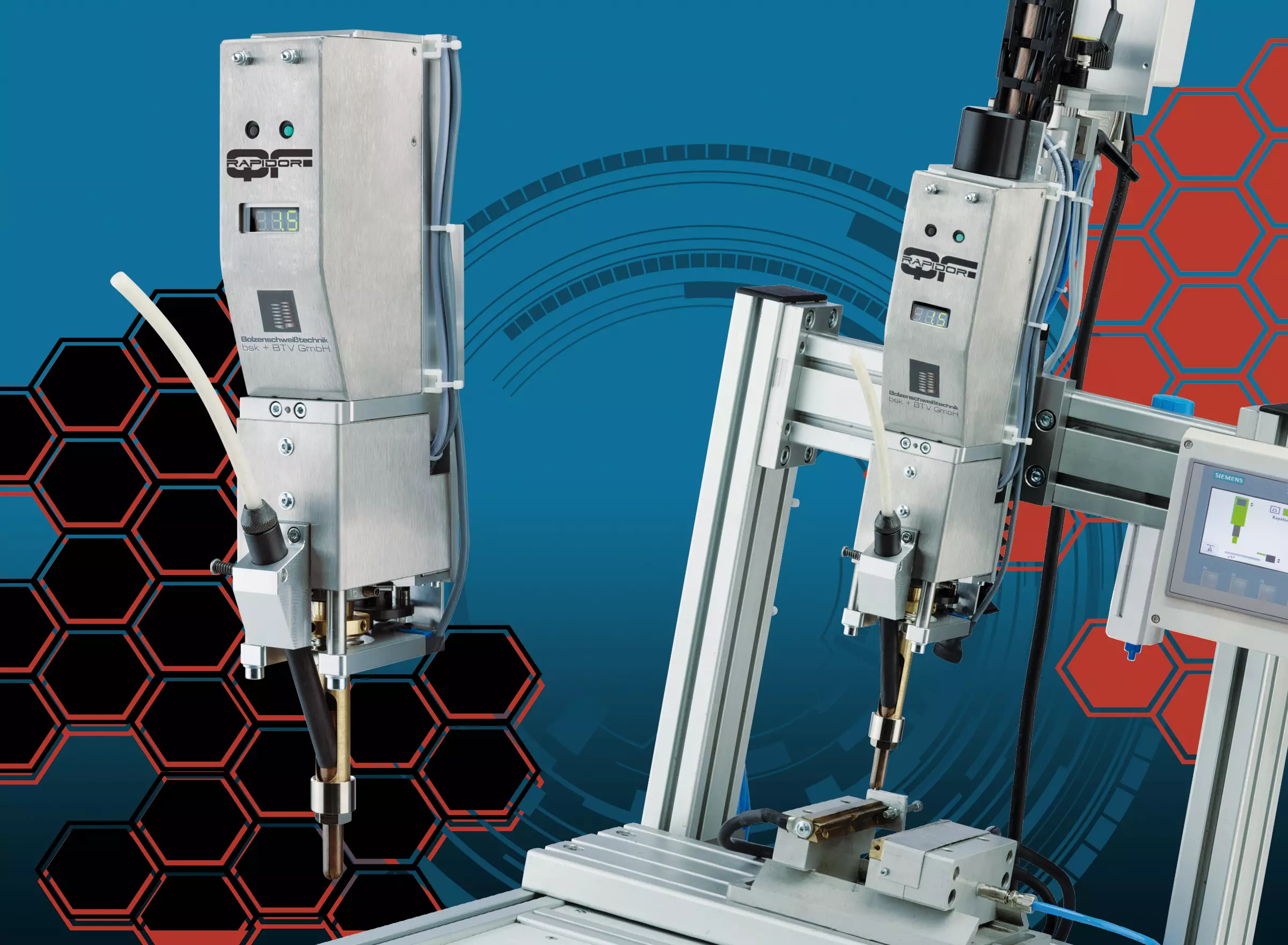

Rapidor QF automatic welding head
Thanks to the patented, fully automatic bolt length adjustment system for the bolt lengths, all dimensions from 6 mm to 30 mm can be fed in and welded with a standard bolt diameter without time-consuming retooling. Components with a large number of bolts of the same diameter - but different lengths - can thus be processed even more economically and efficiently.
The digital automatic welding head RAPIDOR QF is designed for the semi- and fully automatic stud welding of welded studs, bushings and pins according to the following processes (ISO 4063:2008):
>> Capacitor Discharge / Peak Ignition No. 786
>> Short cycle drawn arc and drawn arc No. 783 + 784
9 GUTE GRÜNDE
- Quick set-up thanks to the tried and tested digital display of the lift and immersion dimensions
- High positioning accuracy because the stud is always guided to the maximum extent in the stud holder
- No correction required in the Z direction because the bolt always has the same overhang
- With program-controlled CNC machines, pre-selection of the different lengths in the
respective program block of the machine control - Fast switching to the required bolt length, so no long dwell times
- Particularly suitable for robust everyday use on CNC coordinate tables
- Manual adjustment for semi-automatic operation
- Long service life and precision due to the encapsulated ball guide unit located outside the welding area
- few accessories
