Automatic welding technology
Automatic welding guns for series production: ATP-8M with integrated displacement measurement and ATP-8K for contact-type capacitor discharge welding.
ATP-8M/ATP-8K automatic welding gun
ATP-8M/ATP-8K automatic welding guns

ATP-8M/ATP-8K automatic welding guns

The ATP-8M and ATP-8K are automatic welding guns for semi-automated and automated stud welding applications with medium to high production volumes.

The ATP-8M is designed for drawn arc, short-cycle drawn arc and gap-type capacitor discharge welding. An integrated displacement measurement system records relevant process variables such as stud protrusion, lift, plunge depth and piston speed, supporting monitoring of the welding process.

The ATP-8K is designed for contact-type capacitor discharge welding. On request, this version can also be equipped with a displacement measurement system.

Precise plain-bearing guidance of the gun piston supports high stud positioning accuracy. The robust construction is designed for industrial use. Welding elements can be fed manually through a hand insertion tube or automatically using the BZ-V01 stud feeding system.

Key technical data

Technology
at a glance.

We discuss the configuration and application options to suit your requirements.
ATP-8M
Drawn arc and short-cycle drawn arc welding, plus gap-type capacitor discharge welding
ATP-8K
Capacitor discharge welding using the contact method
Displacement measurement
Integrated in ATP-8M; optional for ATP-8K
Measured variables
Stud protrusion, lift, plunge depth and piston speed
welding elements
Threaded studs, pins and bushes
Stud feeding
Manually or automatically with BZ-V01
Guide
Precise plain-bearing guidance of the gun piston

Product and application images

ATP-8M
ATP-8M
ATP-8 01
ATP-8 01
ATP-8 02
ATP-8 02
ATP-8 03
ATP-8 03
Ergonomic stud welding at a modern bsk + BTV GmbH workstation
Ergonomic stud welding at a modern bsk + BTV GmbH workstation

Data sheets and documentation

DATA SHEET – GERMAN

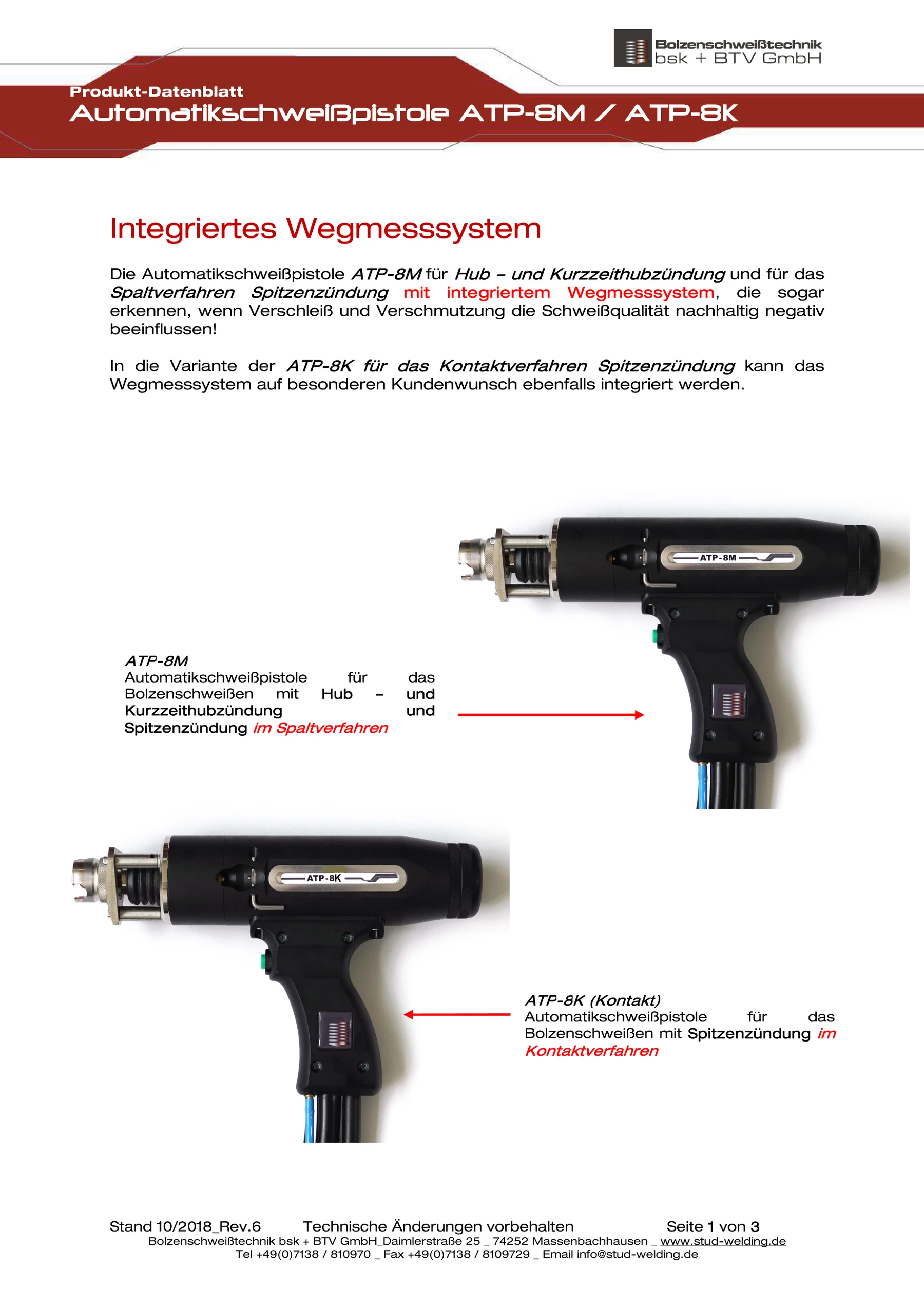

ATP-8M–ATP-8K automatic welding guns data sheet, Rev.7, German, page 1
ATP-8M–ATP-8K automatic welding guns data sheet, Rev.7, German, page 1

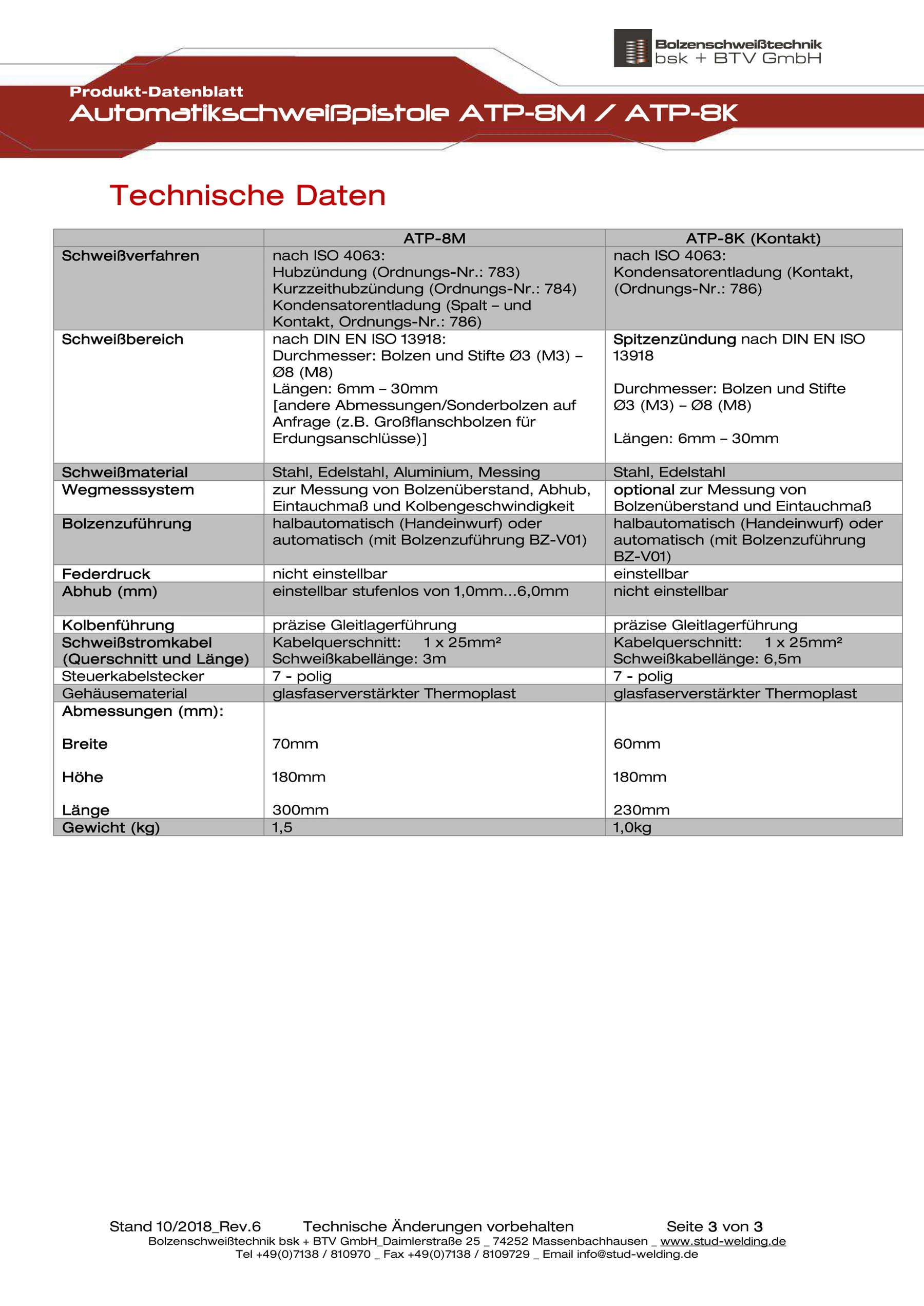

ATP-8M–ATP-8K automatic welding guns data sheet, Rev.7, German, page 3
ATP-8M–ATP-8K automatic welding guns data sheet, Rev.7, German, page 3

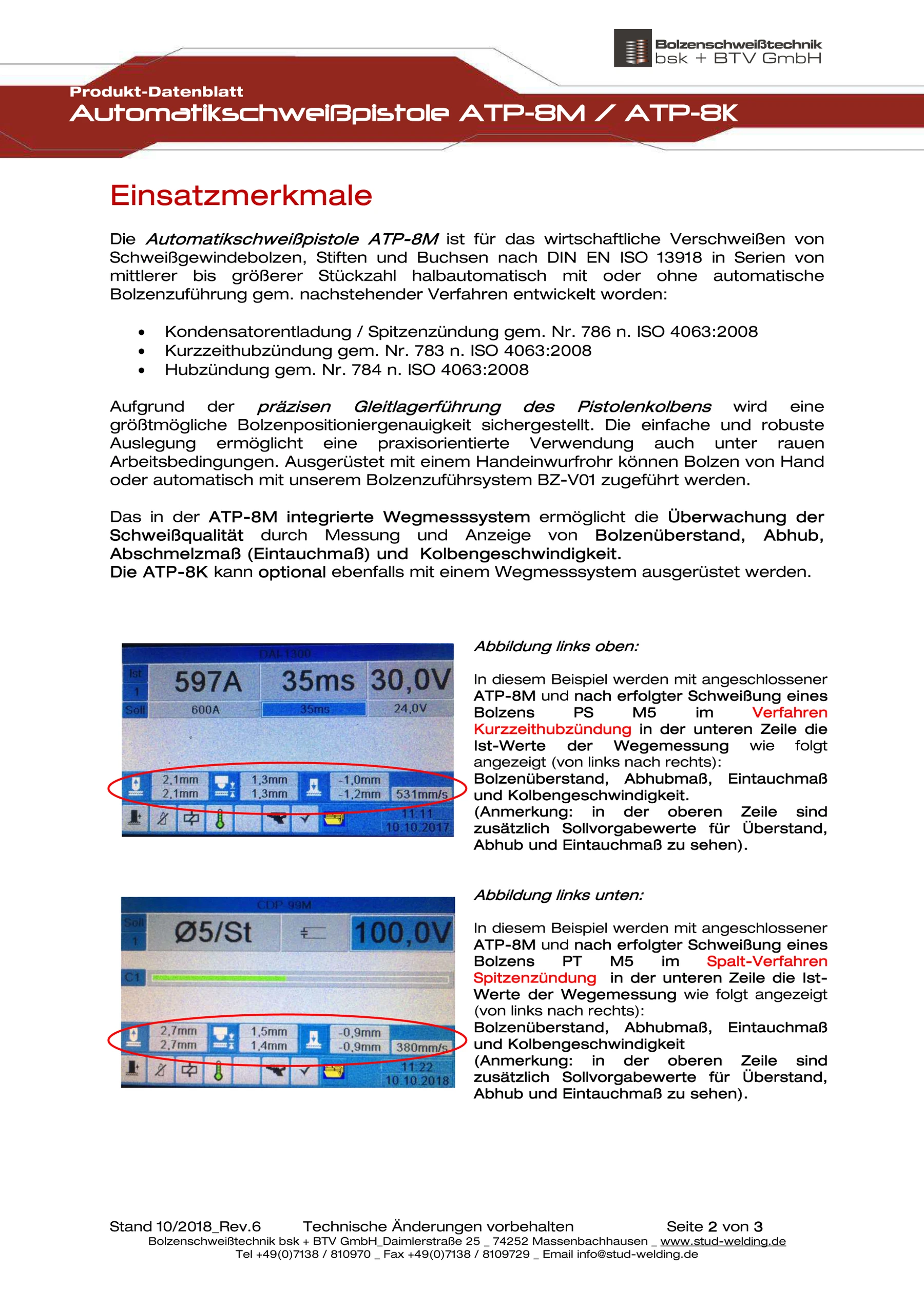

ATP-8M–ATP-8K automatic welding guns data sheet, Rev.7, German, page 2
ATP-8M–ATP-8K automatic welding guns data sheet, Rev.7, German, page 2

GERMAN DATA SHEET · Download PDF ↓

DATA SHEET – ENGLISH

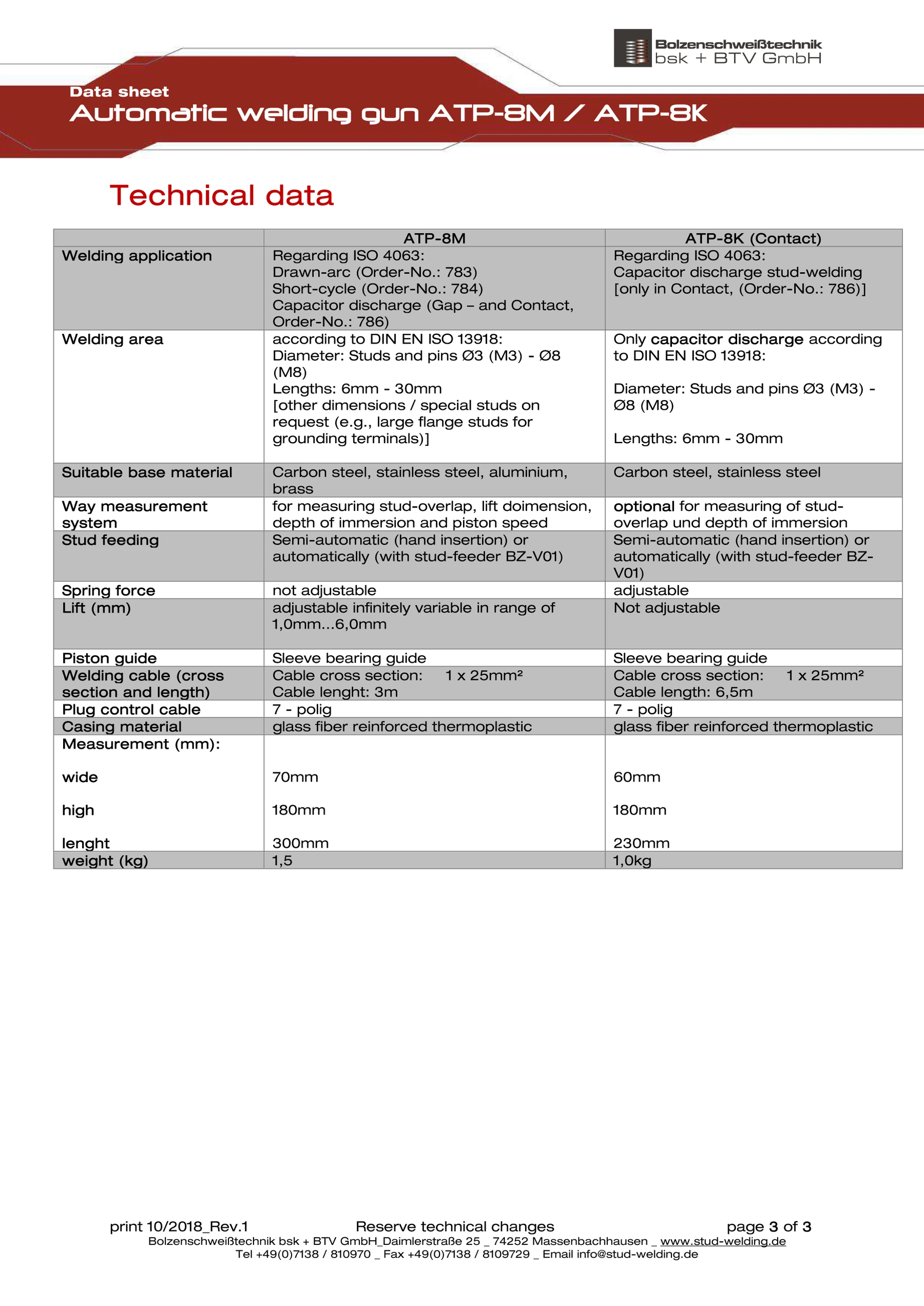

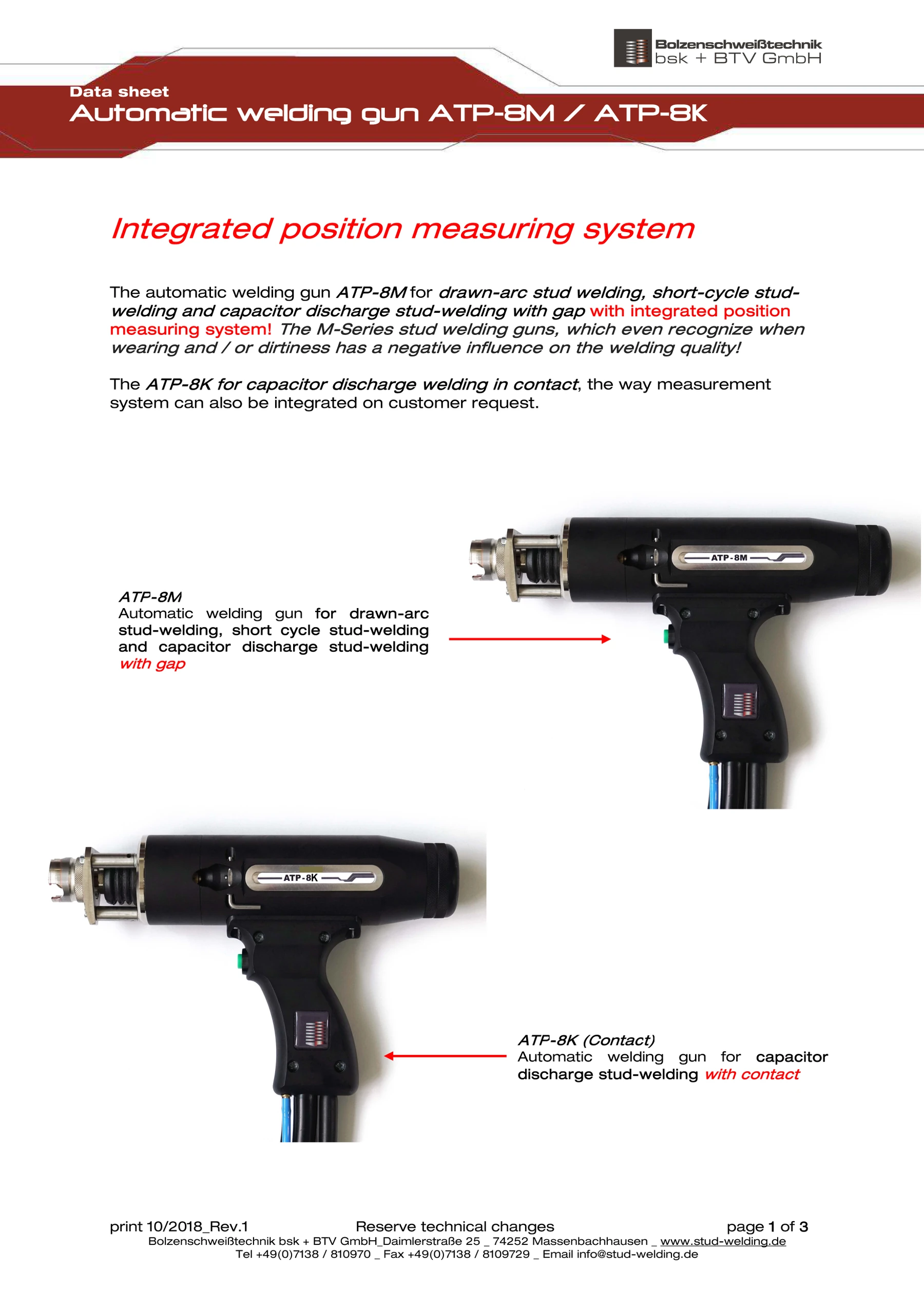

ATP-8M–ATP-8K automatic welding guns data sheet, Rev.1, English, page 1
ATP-8M–ATP-8K automatic welding guns data sheet, Rev.1, English, page 1

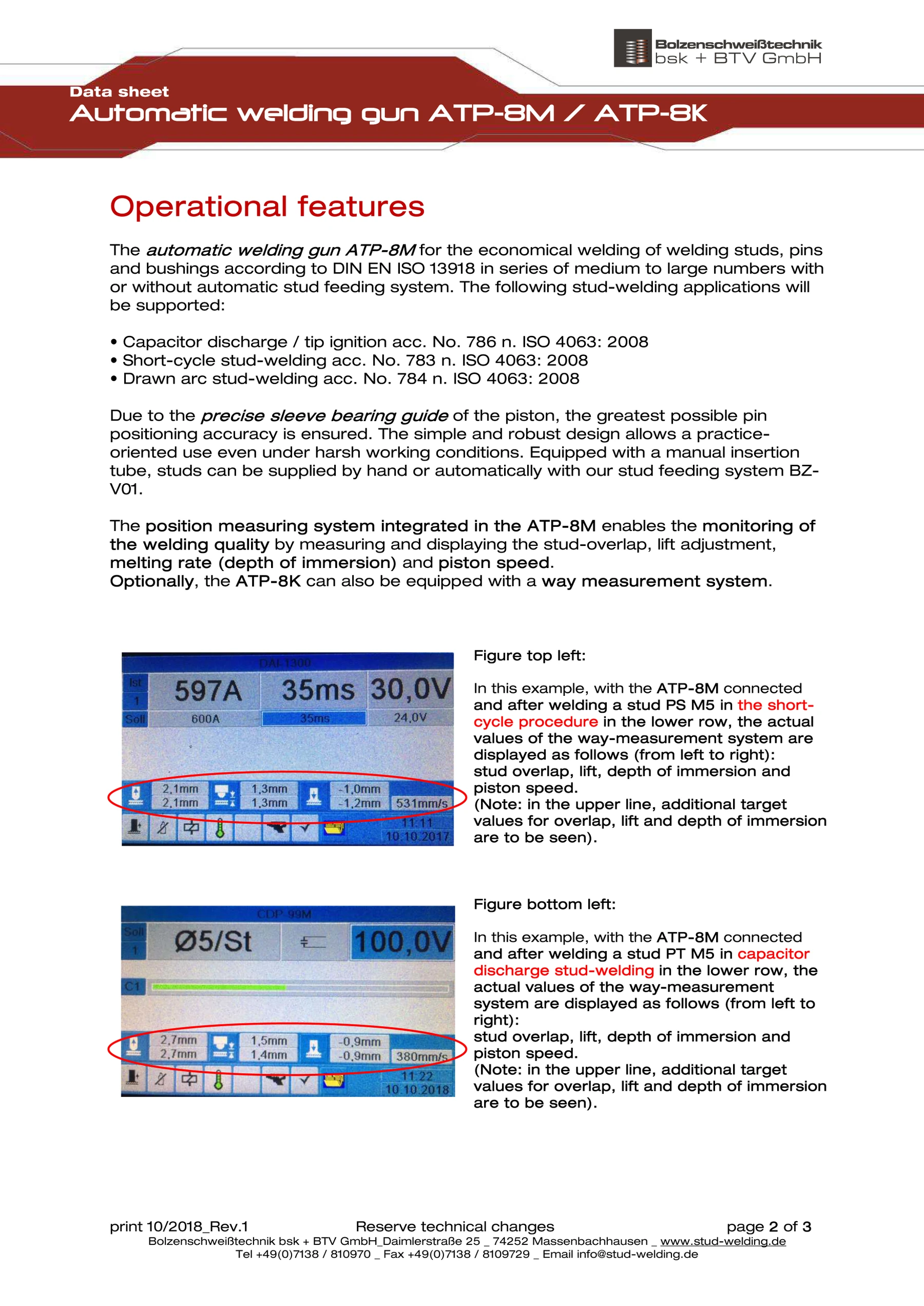

ATP-8M–ATP-8K automatic welding guns data sheet, Rev.1, English, page 2
ATP-8M–ATP-8K automatic welding guns data sheet, Rev.1, English, page 2
ATP-8M–ATP-8K automatic welding guns data sheet, Rev.1, English, page 3
ATP-8M–ATP-8K automatic welding guns data sheet, Rev.1, English, page 3

ENGLISH DATA SHEET · Download PDF ↓

Custom automation

Your application.
Our technology.

Discuss your component geometry, stud types and required production process with us.
Enquire about your project →Fillable system enquiry form (German) PDF ↓
