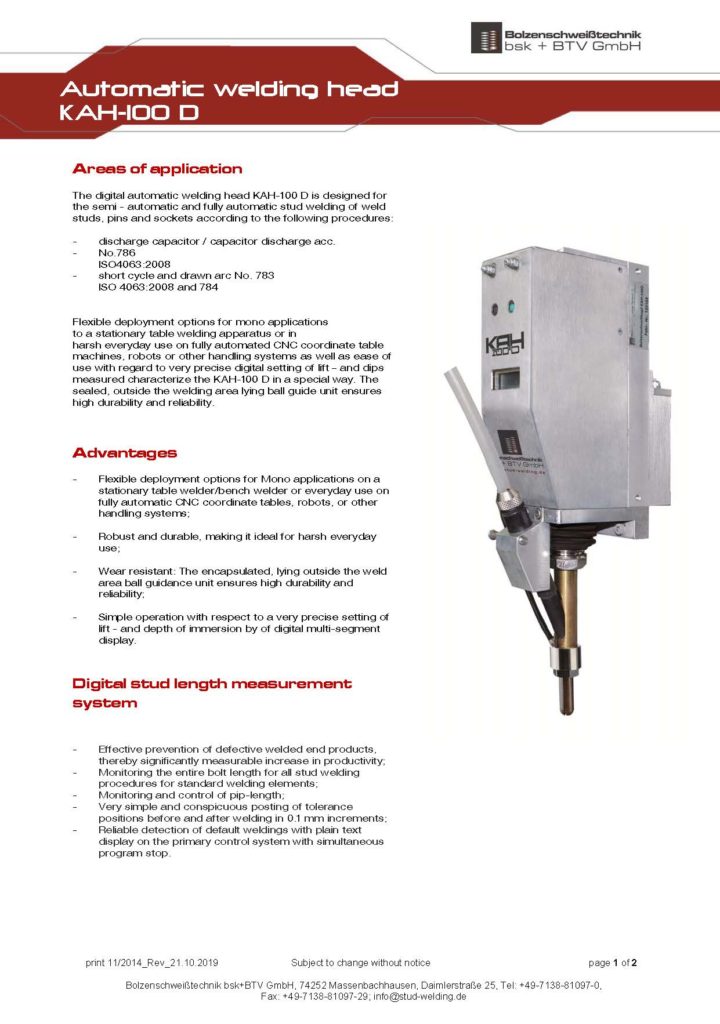

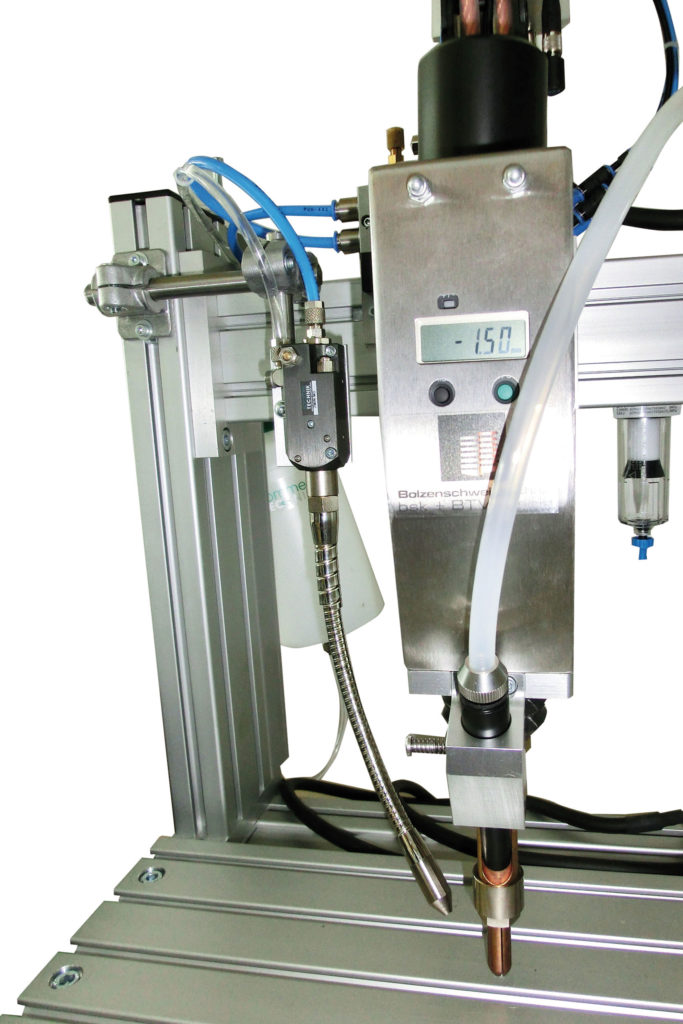

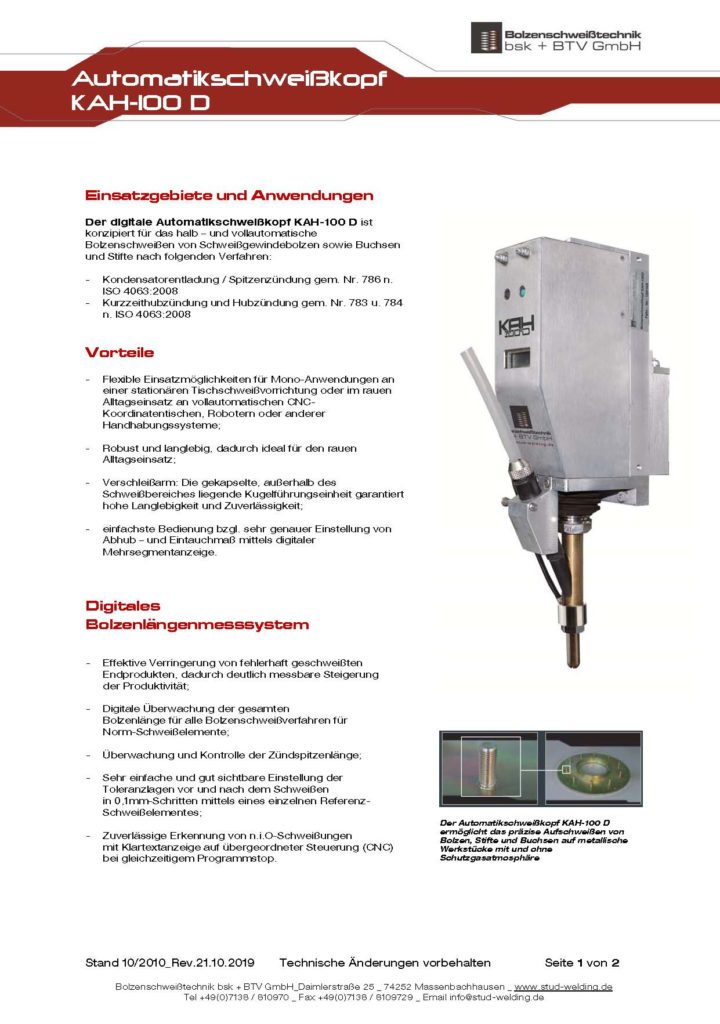

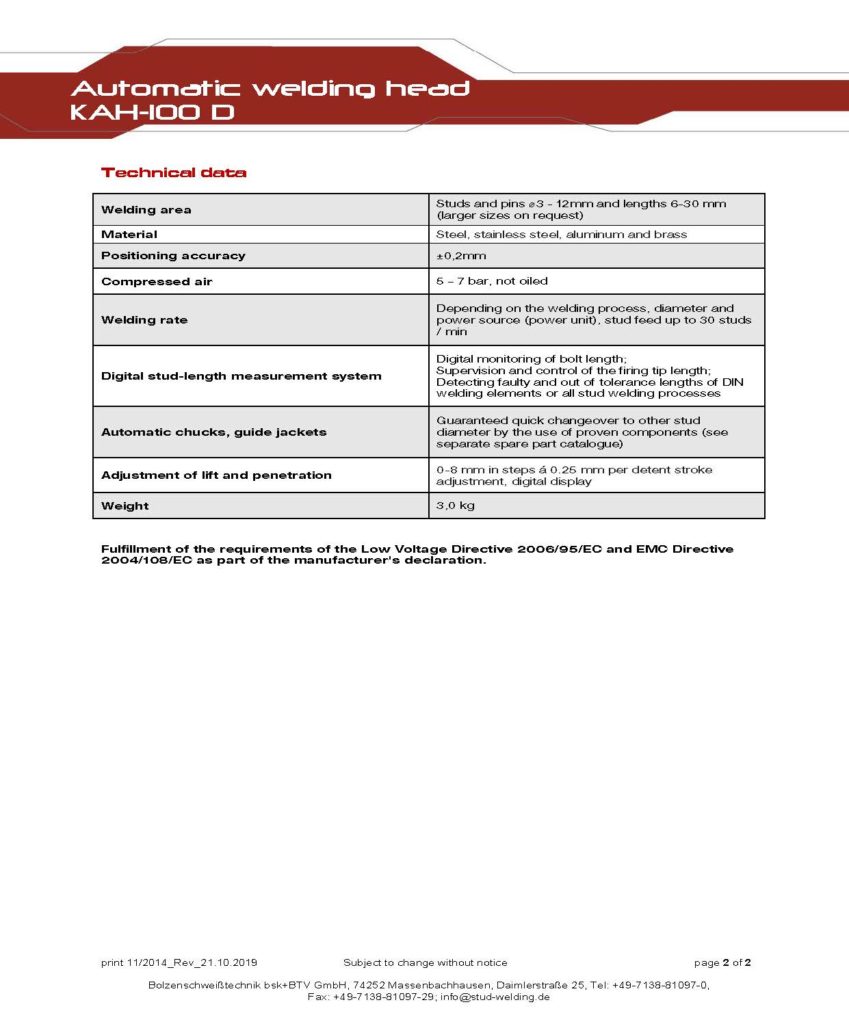

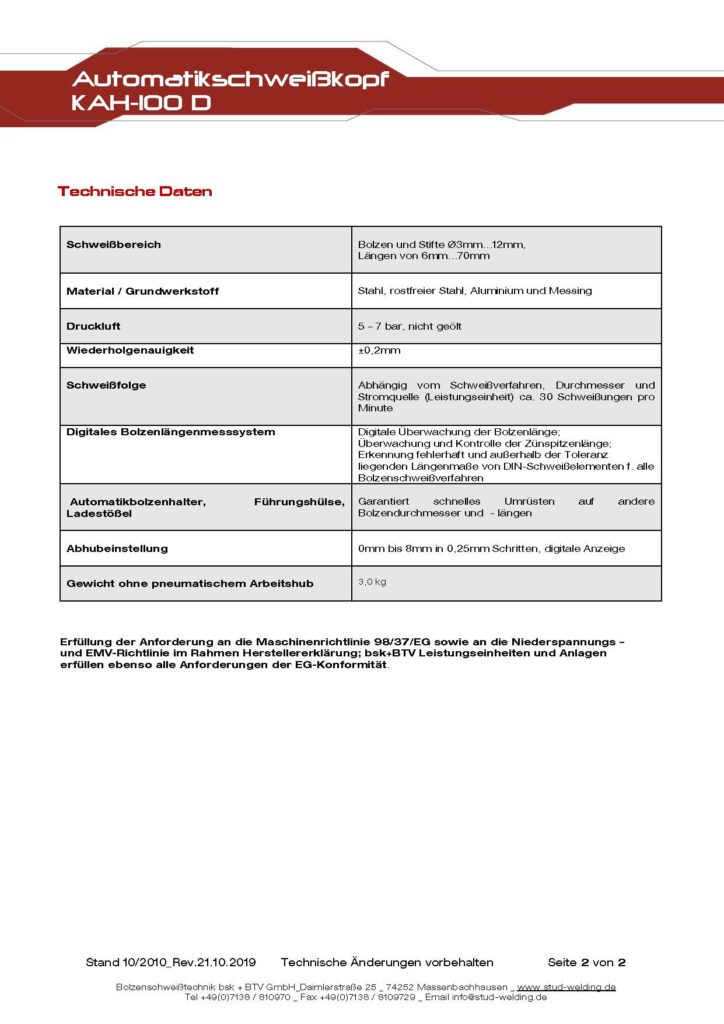

KAH-100D automatic welding head

The KAH-100 D digital automatic welding head is designed for semi-automatic and fully automatic stud welding of threaded welding studs, bushes and pins using the following processes:
– Capacitor discharge welding according to process no. 786 in ISO 4063:2008
– Short-cycle drawn arc and drawn arc welding according to process nos. 783 and 784 in ISO 4063:2008

Advantages

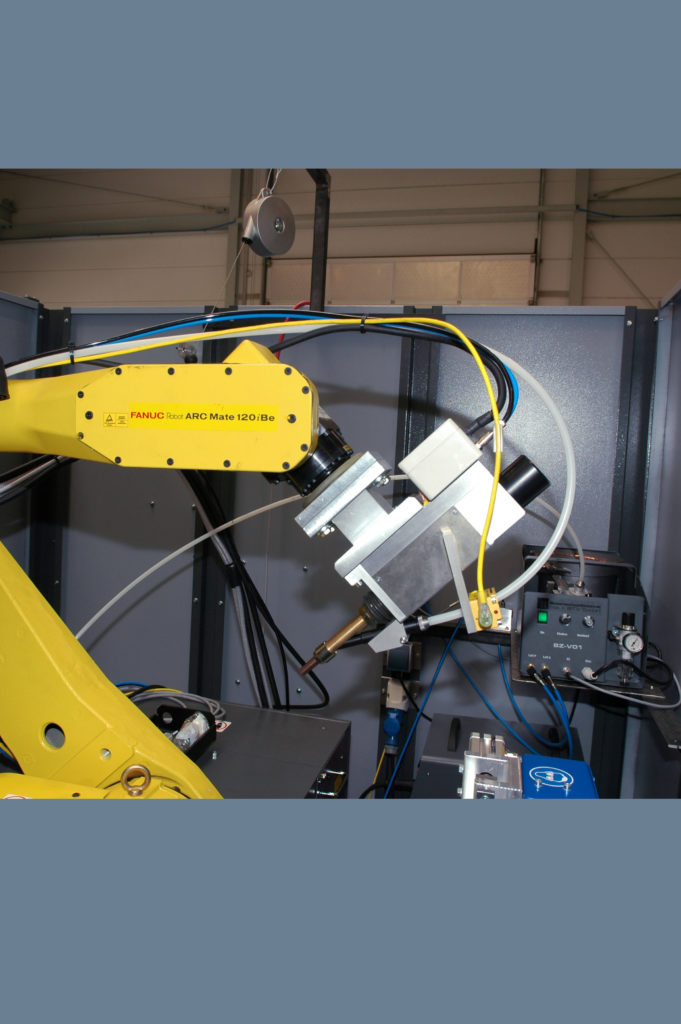

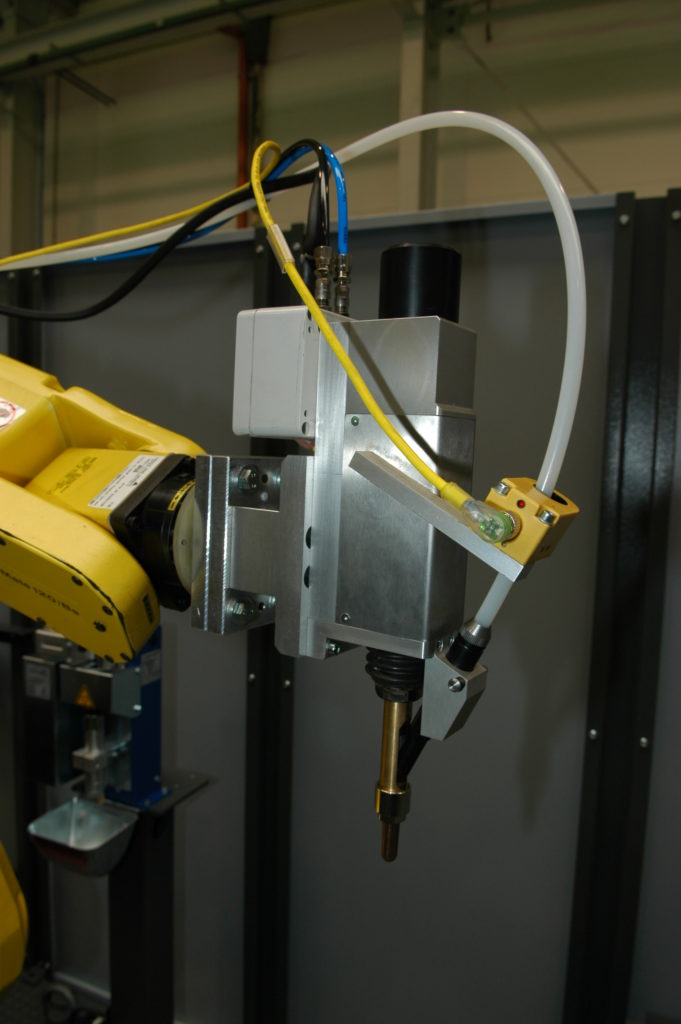

Flexible application options for stand-alone use on a stationary table welding fixture or demanding daily operation on fully automatic CNC coordinate tables, robots or other
handling systems;
Robust and durable, making it ideal for demanding daily operation;
Low wear: the enclosed ball guide unit located outside the welding area ensures
a long service life and high reliability;
Straightforward operation with very precise adjustment of lift and plunge depth using a digital
multi-segment display.

Digital stud length measuring system

Effective reduction of incorrectly welded finished products, producing a clearly measurable increase
in productivity;
Digital monitoring of overall stud length for all stud welding processes with standard welding elements;
Monitoring and checking of ignition tip length;
Simple, clearly visible adjustment of tolerance positions before and after welding
in 0.1 mm increments using a single reference welding element;
Reliable detection of non-conforming welds with plain-text indication on the higher-level control system (CNC)
and simultaneous program stop
